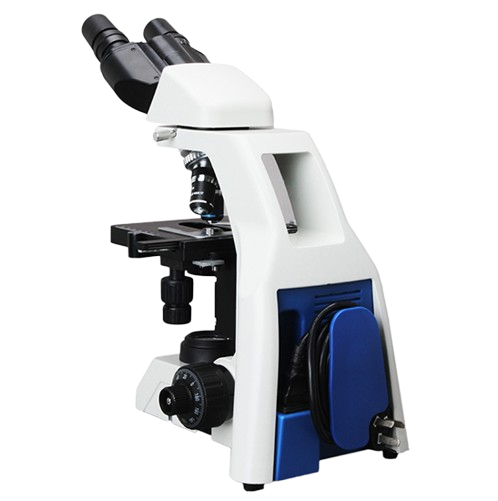

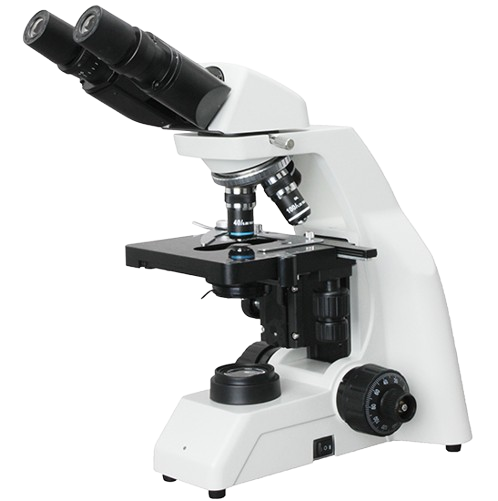

Binocular Biological Microscope BS-2052

Table of Contents

Binocular Biological Microscope BS-2052 – High-Definition Optical System for Precision Research.

Binocular Biological Microscope BS-2052 series is a classical, high-performance biological microscope designed to deliver exceptional optical clarity and user comfort. Engineered with a high-definition optical system and ergonomic structure, this microscope is ideal for precise biological and medical applications.

Binocular Biological Microscope BS-2052 Key Features:

Sharp and high-contrast imaging thanks to a premium optical system.
Anti-mould technology ensures durability even in challenging environments.
Comfortable operation with low-positioned coarse and fine focusing knobs.
ECO function (optional): Automatically powers off after 15 minutes of inactivity, conserving energy.
Cord rest design keeps your workspace organized and clutter-free.

Applications:

The BS-2052 is perfectly suited for a variety of professional and educational settings, including:

Biological and pathological analysis
Histological and immunological studies
Pharmacological and genetic research

It is widely used in hospitals, clinics, laboratories, medical schools, universities, and scientific research institutions.

Specification:

Item	Specification	BS-2052A	BS-2052B	BS-2052A(ECO)	BS-2052B(ECO)
Optical System	Finite Optical System	●		●
Optical System	Infinite Optical System		●		●
Eyepiece	WF10×/18mm	●		●
Eyepiece	WF10×/20mm		●		●
Viewing Head	Monocular Head, inclined at 30°	○		○
	Seidentopf Binocular Head, inclined at 30°, Interpupillary 47-78mm	●	●	●	●
	Seidentopf Trinocular Head, inclined at 30°, Interpupillary 47-78mm	○	○	○	○
	Digital Binocular Head with built-in camera, Inclined at 30°, Interpupillary Distance 47-78mm, 5.0MP, Support Wifi	○	○	○	○
	Digital Binocular Head with Tablet camera, Inclined at 30°, Interpupillary Distance 47-78mm, 5.0MP, 8” LCD, Android OS	○	○	○	○
Objective	Finite Achromatic Objectives 4×, 10×, 40×, 100×	●		●
	Finite Achromatic Objectives 20×, 60×	○		○
	Finite Semi-Plan Achromatic Objectives 2×, 4×, 10×, 20×, 40×, 60×, 100×	○		○
	Finite Plan Achromatic Objectives 4×, 10×, 20×, 40×, 60×, 100×	○		○
	Infinite Semi-Plan Achromatic Objectives 4×, 10×, 40×, 100×		●		●
	Infinite Plan Achromatic Objectives 2×, 4×, 10×, 20×, 40×, 60×, 100×		○		○
	Infinite Plan Fluorescent Objective 4×, 10×, 20×, 40×, 100×		○		○
Nosepiece	Backward Quadruple Nosepiece	●	●	●	●
Nosepiece	Backward Quintuple Nosepiece	○	○	○	○
Stage	Double Layers Mechanical Stage 140mm×140mm, Moving Range 75mm×50mm	●		●
Stage	Rackless Double Layers Mechanical Stage 150mm×139mm, Moving Range 75mm×52mm		●		●
Condenser	Abbe Condenser NA1.25	●	●	●	●
Condenser	Dark Field Condenser (Dry / Oil)	○	○	○	○
Focusing	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm	●	●	●	●
Illumination	S-LED Illumination, Brightness Adjustable	●	●	●	●
	S-LED Illumination with Rechargeable Battery, Brightness Adjustable	○	○	○	○
	6V/20W Halogen Lamp, Brightness Adjustable	○	○	○	○
	Kohler Illumination	○	○	○	○
	ECO Function, automatically turn off after 15 mins of no use	○	○	●	●
	Plane-concave Mirror	○	○	○	○
Optional accessories	Phase Contrast Kit	○	○	○	○
	Polarizing Set	○	○	○	○
	FL-LED Epi-fluorescent Attachment		○		○
Package	1pc/carton, 362646mm, gross weight: 8kg	●	●	●	●
