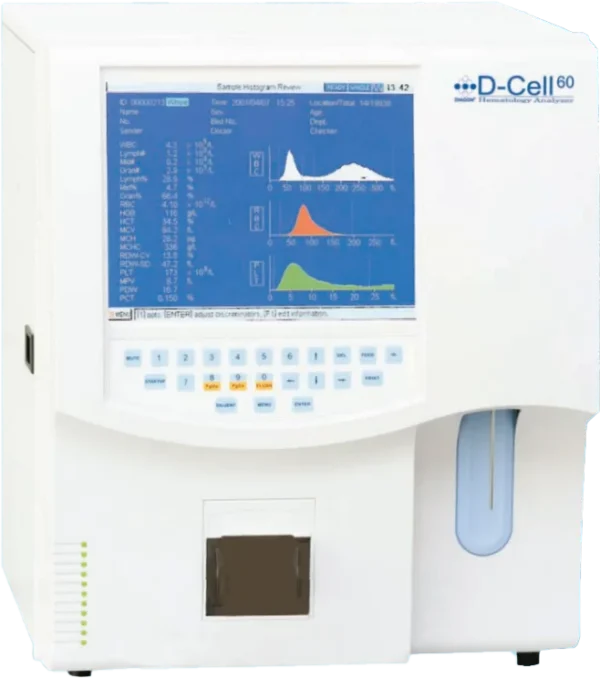

Diagon D-Cell 60 Hematology Analyzer

Diagon D-Cell 60 Hematology Analyzer Exellence in its class

• 3-part differentiation of WBC with improved
cyanide-free reagent system
• 19 parameters + 3 histograms
• Automatic orifice clearing
• Automatic sampling probe cleaning
• Huge number of sample results, including
histograms can be stored
• Built-in thermal printer
(optional external printer)
• Bar code scanner (optional)
• Touchpad and normal computer keyboard for
convenient data entry
• Large color LCD display

Parameters

WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH,
MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT and Histogram for WBC, RBC,
PLT

Principles

Electrical resistance for cell counting
Cyanide free method for hemoglobin

• Sample Volume: Prediluted 20 uL blood, Whole blood 13 uL
• Aperture Diameter: WBC 100 um, RBC/PLT 70 um
• Dilution Ratios: Whole Blood Capillary Blood
  WBC 1:304 1:293
  RBC/PLT 1:44833 1:44402
• Throughput: 60 samples per hour
• Display: Large color LCD display , Resolution: 800×600
• Alerts: 33 different alert messages
• Carryover: WBC, RBC, HGB < 0.5%, PLT < 1 %
• Input/Output: External keyboard RS232x2, parallel printer (optional),
• bar code scanner (optional)
• Printout: Thermal printer with 50 mm wide paper, matrix printer (optional)
• Operating Environment: Temperature 15oC- 30oC, Humidity 30% – 85%
• Power Requirement: AC 100V-240V, 50/60Hz,
• Dimensions: 460mm(H)x390mm(W)x390mm(D)
• Weight: 25kg
