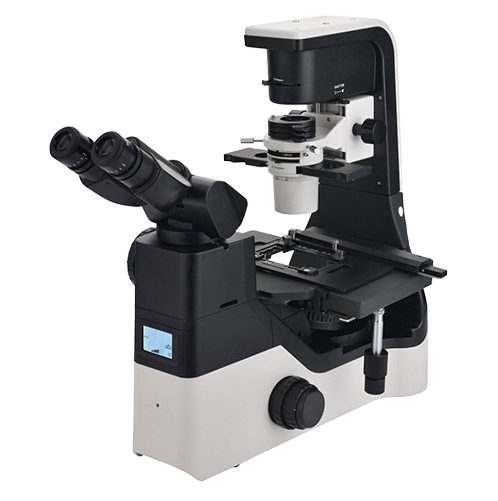

Inverted Biological Microscope BS-2094C
Table of Contents
Inverted biological microscope BS-2094C is a high-performance microscope specifically engineered for observing live cultured cells in medical laboratories, universities, and research institutes. Designed with an advanced infinite optical system and an ergonomic structure, it delivers outstanding optical clarity and user-friendly operation, making it suitable for intensive lab work.
This model utilizes long-life LED lamps for both transmitted and fluorescence illumination, ensuring consistent brightness with minimal maintenance. A digital camera can be conveniently mounted on the left side for capturing high-quality photos, recording videos, and performing precise measurements. The microscope also features a tilting head for improved ergonomics, while the adjustable transmitted light arm allows easy placement and removal of petri dishes or culture flasks.
Inverted biological microscope BS-2094C is equipped with an intelligent illumination management system that automatically adjusts light intensity when switching objectives. This ensures optimal lighting conditions without manual effort. Additionally, the built-in LCD screen clearly displays key working parameters, such as magnification level, illumination strength, light source mode (transmitted or fluorescent), and current operational status (active or sleep mode), enhancing both accuracy and efficiency in the laboratory.
Inverted biological microscope BS-2094C Key Features:
1-Inverted biological microscope BS-2094C features a state-of-the-art infinite optical system, equipped with Φ22mm wide field eyepieces and a 5°-35° inclined viewing head to ensure a more comfortable observation experience.
2-Inverted biological microscope BS-2094C has the camera port positioned on the left side to minimize operational disturbance. The light distribution modes are designed as follows: 100% to the eyepiece and 100% to the camera, making it more versatile for various observation needs.

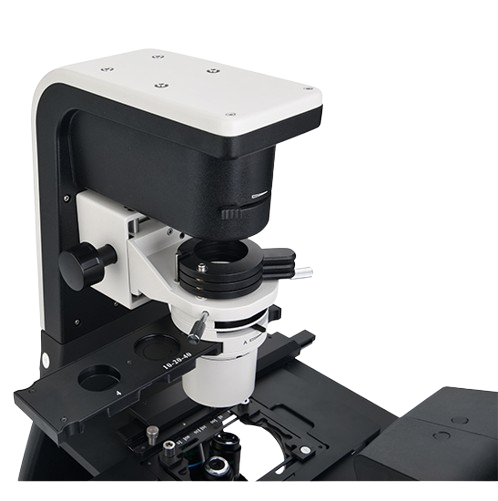

3-The inverted biological microscope BS-2094C comes with a long working distance condenser (N.A. 0.30), allowing a working distance of 75mm with the condenser, making it suitable for observing larger culture dishes.
4-Inverted biological microscope BS-2094C includes a spacious stage with a size of 170mm × 250mm, and the mechanical stage has a moving range of 128mm (X) × 80mm (Y). This allows users to comfortably perform research with various petri-dish holders available.
5-BS-2094C features an intelligent illumination management system:
including a coded quintuple nosepiece that automatically adjusts light intensity per objective to reduce eye strain and boost efficiency.
2-The inverted biological microscope BS-2094C features a dimming knob on the left side of the base that provides multiple functions:
- Single click: Sleep mode
- Double click: Lock/unlock brightness
- Rotate: Adjust brightness
- Press + rotate (clockwise): Switch to transmitted light
- Press + rotate (counterclockwise): Switch to fluorescent light
- Press for 3 seconds: Set auto shut-off time
3-An integrated LCD screen on the front panel of the inverted biological microscope BS-2094C displays the microscope’s working mode, including magnification, light intensity, sleep mode, and more.
Start& working Lock mode Turn off the light in 1 hour Sleep mode
6-The control layout of the inverted biological microscope BS-2094C is ergonomically designed for quick and easy access. By positioning the controls close to the user, the design minimizes user fatigue and helps maintain clean and accurate samples during long observations.
7-The inverted biological microscope BS-2094C is built with an anti-UV coating and is designed to be used in a clean bench. Its compact and stable body ensures that it is suitable for UV sterilization, helping maintain a sterile environment for cell sampling and observation.
8-Various observation methods, including phase contrast, Hoffman modulation phase contrast, and 3D emboss contrast, are available with transmitted illumination, allowing for clear, high-contrast imaging of living cells, microorganisms, tissue slides, and more.
9-LED Fluorescent Attachment is Optional:
(1)Inverted biological microscope BS-2094C makes fluorescent observation easier with an optional LED attachment.
The system uses a fly-eye lens and Kohler illumination to ensure a uniform, bright field of view, ideal for capturing high-definition images with remarkable detail. Unlike traditional mercury lamps, the LED light source has a longer service life, is more energy-efficient, and eliminates the issues of preheating, excessive heat, and cooling delays—offering a smoother, safer, and more cost-effective user experience.
(2) Inverted biological microscope BS-2094C is suitable for use with a wide variety of fluorescent dyes.
The LED fluorescent attachment includes three filter blocks, making it compatible with a broad spectrum of fluorescent stains. This allows for sharp, high-contrast fluorescence imaging, suitable for numerous research and diagnostic applications.
Breast cancer Hippocampus Mouse brain nerve cells
10-Inverted biological microscope BS-2094C is equipped with a tiltable viewing head, ensuring the most comfortable operational state for users, whether they are sitting or standing.

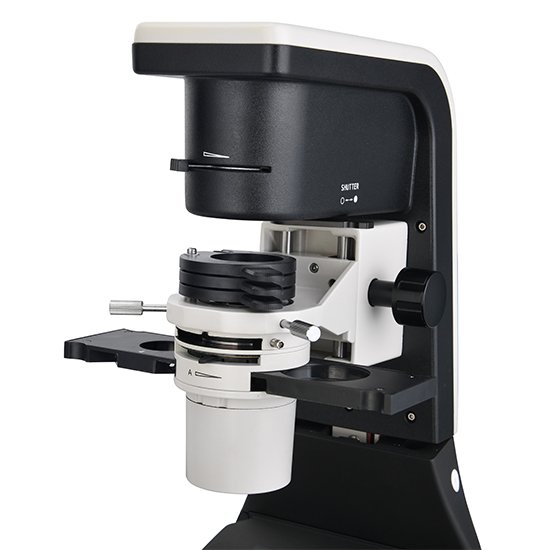

11-the tiltable transmitted illumination column adds convenience by providing additional space for replacing larger culture dishes, allowing for smoother transitions during sample changes.
Specification:
| Item | Specification | BS-2094C | BS-2094CF | |
| Optical System | NIS 60 Infinite Optical System, Tube length 200mm | ● | ● | |
| Viewing Head | Seidentopf Tilting Binocular Head, adjustable 5-35° inclined, Interpupillary Distance 48-75mm, Left side camera port, Light distribution: 100: 0 (100% for eyepiece), 0:100 (100% for camera), Eyepiece Tube Diameter 30mm | ● | ● | |
| Eyepiece | SW10×/ 22mm | ● | ● | |
| WF15×/ 16mm | ○ | ○ | ||
| WF20×/ 12mm | ○ | ○ | ||
| Objective (Parfocal distance 60mm, M25×0.75) | NIS60 Infinite LWD Plan Achromatic Objective | 4×/0.1, WD=30mm | ● | ○ |
| 10×/0.25, WD=10.2mm | ○ | ○ | ||
| 20×/0.40, WD=12mm | ○ | ○ | ||
| 40×/0.60, WD=2.2mm | ○ | ○ | ||
| NIS60 Infinite LWD Plan Phase Contrast Achromatic Objective | PH10×/0.25, WD=10.2mm | ● | ○ | |
| PH20×/0.40, WD=12mm | ● | ○ | ||
| PH40×/0.60, WD=2.2mm | ● | ○ | ||
| NIS60 Infinite LWD Plan Semi-APO Fluorescent Objective | 4×/0.13, WD=17mm, cover glass=- | ○ | ● | |
| 10×/0.3, WD=7.4mm, cover glass=1.2mm | ○ | ● | ||
| 20×/0.45, WD=8mm, cover glass=1.2mm | ○ | ● | ||
| 40×/0.60, WD=3.3mm, cover glass=1.2mm | ○ | ● | ||
| 60×/0.70, WD=1.8-2.6mm, cover glass=0.1-1.3mm | ○ | ○ | ||
| NIS60 Infinite LWD Plan Semi-APO Phase Contrast Objective | 4×/0.13, WD=17.78mm, cover glass=- | ○ | ○ | |
| 10×/0.3, WD=7.4mm, cover glass=1.2mm | ○ | ○ | ||
| 20×/0.45, WD=7.5-8.8mm, cover glass=1.2mm | ○ | ○ | ||
| 40×/0.60, WD=3-3.4mm, cover glass=1.2mm | ○ | ○ | ||
| 60×/0.70, WD=1.8-2.6mm, cover glass=0.1-1.3mm | ○ | ○ | ||
| Nosepiece | Coded Quintuple Nosepiece | ● | ● | |
| Condenser |
N.A. 0.3 Insert Plate Condenser, Working Distance 75mm | ● | ● | |
| N.A. 0.4 Insert Plate Condenser, Working Distance 45mm | ○ | ○ | ||
| Telescope | Centering Telescope: used to adjust the center of phase annulus | ● | ● | |
| Phase Annulus | 10×-20×-40× Phase Annulus Plate (center adjustable) | ● | ● | |
| 4× Phase Annulus Plate | ○ | ○ | ||
| Stage | Stage 170 (X)×250(Y) mm with glass insert plate (diameter 110mm) | ● | ● | |
| Attachable Mechanical Stage, X-Y Coaxial Control, Moving Rang: 128mm×80mm, accept 5 types of petri-dish holders, well plates and stage clips | ● | ● | ||
| Auxiliary stage 70mm×180mm, used to extend the stage | ○ | ○ | ||
| Universal Holder: used for Terasaki plate, glass slide and Φ35-65mm petri dishes | ● | ● | ||
| Terasaki Holder: used for Φ35mm Petri Dish Holder and Φ65mm petri dishes | ○ | ○ | ||
| Glass Slide and Petri Dish Holder Φ54mm | ○ | ○ | ||
| Glass Slide and Petri Dish Holder Φ65mm | ○ | ○ | ||
| Petri Dish Holder Φ35mm | ○ | ○ | ||
| Petri Dish Holder Φ90mm | ○ | ○ | ||
| Focusing | Coaxial Coarse and Fine Adjustment, tension adjustment, Fine Division 0.001mm, Fine stroke 0.2mm per rotation, Coarse stroke 37.5mm per rotation. Moving Range: up 7mm, down 1.5mm; Without limitation can up to 18.5mm | ● | ● | |
| Transmitted Illumination | 3W S-LED Koehler illumination, Brightness Adjustable | ● | ● | |
| EPI-Fluorescent Attachment | LED illuminator, built-in Fly-eye lens, can be configured with up to 3 different LED light source and B, G, U fluorescent filter blocks | ○ | ● | |
| LED light source and V, R, FITC, DAPI, TRITC, Auramine, mCherry fluorescent filters | ○ | ○ | ||
| Hoffman phase contrast | Hoffman Condenser with 10×, 20×, 40× insert plate, centering telescope and special objective 10×, 20×, 40× | ○ | ○ | |
| 3D Emboss Contrast | Main emboss contrast plate with 10×-20×-40× will be inserted into condenser | ○ | ○ | |
| Auxiliary emboss contrast plate will be inserted into slot near viewing head | ○ | ○ | ||
| C-mount Adapter | 0.5× C-mount Adapter (focus adjustable) | ○ | ○ | |
| 1× C-mount Adapter (focus adjustable) | ● | ● | ||
| Other Accessories | Warm stage | ○ | ○ | |
| Light shutter, can be used to block the external light | ○ | ○ | ||
| Dust cover | ● | ● | ||
| Power Supply | AC 100-240V, 50/60Hz | ● | ● | |
| Fuse | T250V500mA | ● | ● | |
| Packing | 2cartons/set, Packing Size: 47cm×37cm×39cm, 69cm×39cm×64cm, Gross Weight: 20kgs, Net Weight: 18kgs | ● | ● | |
Note: ● Standard Outfit, ○ Optional
Application:
Inverted biological microscope BS-2094C is ideal for use in medical and health facilities, universities, and research institutes. It is designed for observing microorganisms, cells, bacteria, and tissue cultures. This microscope allows for continuous monitoring of processes such as cell and bacterial growth and division within culture mediums. It enables users to capture both images and videos during these observations. The inverted biological microscope BS-2094C is extensively utilized across various scientific fields, including cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany, and more.
