Monocular Biological Microscope BS-2028M
Table of Contents
Monocular Biological Microscope BS-2028M is specially engineered for college education, medical use, and laboratory research. This versatile model supports monocular, binocular, and trinocular configurations, combining elegant design with ergonomic comfort. With advanced optical technology and a user-friendly structure, this microscope ensures accurate results and enjoyable operation.
Monocular Biological Microscope BS-2028M Key Features
1. Monocular biological microscope BS-2028M features a graceful, integrated drop-style appearance that offers a sleek and professional look.
2. Monocular biological microscope BS-2028M is equipped with a newly designed butterfly-style binocular viewing head that rotates 360°, increasing the viewing height by 44mm for better adaptability to users of various heights.
3. Monocular biological microscope BS-2028M ensures excellent stability with its unique viewing head structure and integrative stand design.
4. Monocular biological microscope BS-2028M uses a safe 5V-12V low-voltage power input. Its built-in LED illumination system is compatible with power banks, laptops, and car power supplies, making it ideal for use in any location or condition.
5. Monocular biological microscope BS-2028M offers an optional innovative low-power light-reducing objective that allows easy switching between low and high power objectives without adjusting the light intensity.

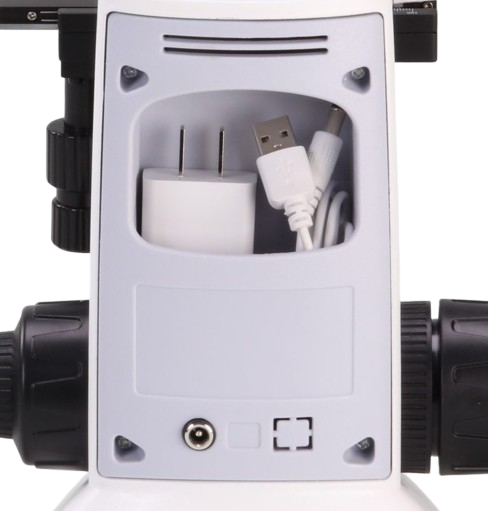

6. Monocular biological microscope BS-2028M includes a convenient built-in storage bin at the back of the stand, making transportation and accessory storage easier.

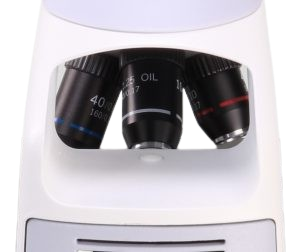

7. Monocular biological microscope BS-2028M features a rear viewing window that displays the objective magnification clearly from the back.
Specification:
| Item | Specification | BS-2028M | BS-2028B | BS-2028T | |
| Optical System | Color Corrected Finite Optical System | ● | ● | ● | |
| Viewing Head | Inclined 30° monocular tube | ● | |||
| Inclined 30° binocular tube, 360° rotatable, interpupillary distance: 48-75mm | ● | ||||
| Inclined 30° trinocular tube, 360° rotatable, interpupillary distance: 48-75mm, splitting ratio: eyepiece: trinocular=20:80 | ● | ||||
| Eyepiece | Wide field eyepiece WF10X/18mm (pointer is optional) | ● | ● | ● | |
| Wide field eyepiece WF16X/13mm | ○ | ○ | ○ | ||
| Wide field eyepiece WF10X/18mm, with reticule 0.1mm | ○ | ○ | ○ | ||
| Wide field eyepiece WF10X/18mm, adjustable, with reticule 0.1mm | ○ | ○ | ○ | ||
| Infinite Objective | Achromatic Objectives | 4X/ NA 0.10 | ● | ● | ● |
| 10X/ NA 0.25 | ● | ● | ● | ||
| 20X/ NA 0.40 | ○ | ○ | ○ | ||
| 40X/ NA 0.65 (S) | ● | ● | ● | ||
| 60X/ NA 0.80 (S) | ○ | ○ | ○ | ||
| (Oil) 100X/NA 1.25 (S) | ● | ● | ● | ||

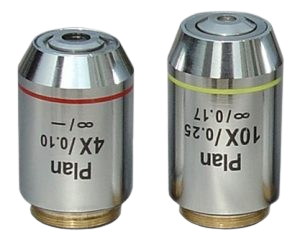

| Plan Achromatic Objectives | 4X/ NA 0.10 | ○ | ○ | ○ | |
| 10X/ NA 0.25 | ○ | ○ | ○ | ||
| 40X/ NA 0.65 (S) | ○ | ○ | ○ | ||
| (Oil) 100X/ NA 1.25 (S) | ○ | ○ | ○ | ||
| Nosepiece | Backward Quadruple Nosepiece | ● | ● | ● | |
| Mechanical Stage | Stage size: 125mm*115mm. Travel: 35mm*75mm. | ● | ● | ● | |
| Condenser | Abbe condenser NA 1.25 with iris diaphragm | ● | ● | ● | |
| Focusing | Coaxial coarse and fine focusing knob, coarse focusing travel range: 25mm, fine division: 2µm | ● | ● | ● | |
| Illumination | 3W LED lamp | ● | ● | ● | |
| Dark Field Unit | Dark Field Ring, used for 4X-40X objectives | ○ | ○ | ○ | |
| C-mount | 0.5X C-mount adapter, adjustable focus | ○ | ○ | ○ | |
| 1X C-mount adapter | ○ | ○ | ○ | ||
Note: ●Standard Outfit, ○Optional
Application:
Monocular biological microscope BS-2028M is an ideal tool for applications in biology, histology, pathology, bacteriology, immunology, and pharmaceutical research. It is widely suitable for use in medical and healthcare facilities, diagnostic laboratories, research institutes, academic labs, colleges, and universities.
