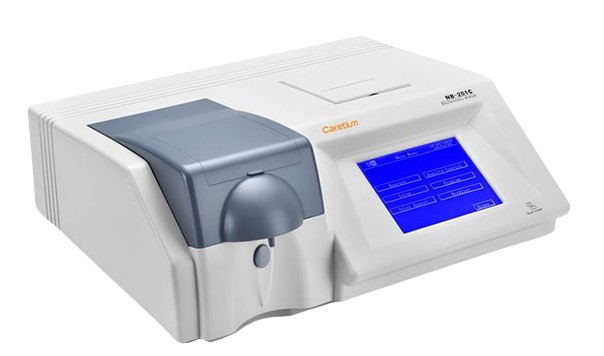

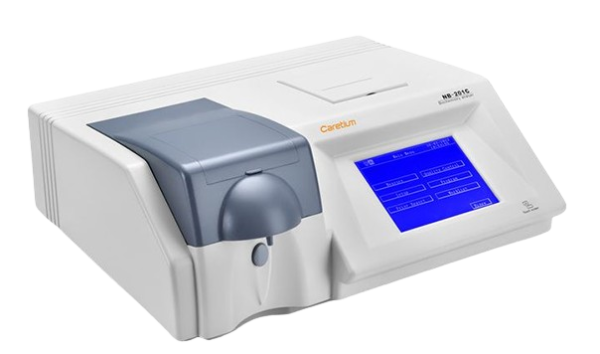

NB-201C Semi-auto Chemistry analyzer
Model: NB-201C
Test Principle: Endpoint method, Two-point method, Kinetic method
Operation Interface: Large-size LCD touch screen
Sample Volume: 200-300µL Sample volume
Printer: Built-in thermal printer
Dawnload Brochure
Table of Contents
NB-201C Semi-auto Chemistry Analyzer from Caretium Medical Instruments Co., Limited is a reliable and high-performance biochemistry analyzer designed for precise and efficient chemical analysis in clinical laboratories.
This semi-automated analyzer combines accuracy, stability, and ease of use, featuring a large LCD touch screen, an advanced optical system, and a long-life halogen lamp to ensure consistent and dependable test results.
The NB-201C allows users to store more than 100 chemistry assays and 3700+ test results, with built-in quality control data management and printing functions. Equipped with a built-in thermal printer and RS-232 data transmission port, it enables convenient result output and seamless connectivity to LIS and workstation systems.
With its durable design, strong anti-interference optical path, and user-friendly interface, the NB-201C Semi-auto Chemistry Analyzer is the ideal choice for small to medium-sized laboratories seeking a balance between precision, performance, and cost-effectiveness.
NB-201C Semi-auto Chemistry Analyzer Features
NB-201C Semi-auto Chemistry Analyzer-Specifications:
Item | Specification |
Principle | Endpoint method, two-point method, kinetic method |
Light Source | 12V/20W halogen lamp, lifespan is 2000+ |
Wavelength Range | 340 nm ~ 750 nm |
Set Wavelengths | 340 nm, 405 nm, 492 nm, 510 nm, 546 nm, 578 nm, 630 nm (one customized channel) |
Absorbance Range | 0.000~3.000 ABS |
Absorbance Resolution | 0.001 ABS |
Drift | ≤ 0.005 ABS / 20 min |
Assay settings | There are preset parameters, which can be modified |
Correction Function | Supports linear and nonlinear calibration |
Cuvette | Quartz flow cell & cuvette |
Cross-contamination Rate | < 1.0% |
Stray Light | < 0.3% (340nm) |
Incubation Temperature | 25°C, 30°C, 37°C |
Work Environment | Emperature 10°C–30°C, Relative humidity ≤ 70% |
Power Supply | 100~240V AC, 50/60 Hz |
Dimensions | 420 × 380 × 170 mm |
Weight | 8.5 kg |
