PT1000 Blood Gas Analyzer
Model: PT1000
Test Parameters: pH, pCO₂, pO₂, Na⁺, K⁺, Cl⁻, Ca²⁺, Glucose, Lactate
(up to 33 parameters)
Measurement Time: ≤ 60 seconds
Operation Interface: 7" Touchscreen
Sample Type: Arterial blood, Venous blood, Capillary blood, Quality Control
Cartridge System: All-in-one: calibration, cleaning, waste management
Connectivity: HL7 Protocol, LIS/HIS compatible
Portability: Built-in handle & 4-hour battery backup
Printer: Built-in thermal printer
Download Brochure
Table of Contents
PT1000 Blood Gas Analyzer – Advanced Innovation in Blood Gas Testing
The PT1000 Arterial Blood Gas Analyzer from EasyDX represents one of the most advanced technologies in arterial blood gas diagnostics. Capable of performing up to 33 parameters within just one minute, it ensures rapid and highly accurate results that empower healthcare professionals to make critical decisions with confidence. Its innovative design eliminates the need for maintenance, since all samples and reagents flow exclusively through the reagent pack without touching the device’s internal components. This not only protects the system’s lifespan but also reduces operational costs for hospitals and laboratories.
Product Description
The PT1000 Blood Gas Analyzer is a high-performance diagnostic system engineered for precise and rapid analysis of blood gases, electrolytes, and metabolites. Its compact structure and advanced micro-sensor technology make it ideal for use in ICUs, emergency rooms, and operating theaters. Offering accurate results in under 60 seconds and featuring a user-friendly touchscreen with cartridge-based operation, the PT1000 is a maintenance-free solution tailored for critical care environments.
PT1000 Blood Gas Analyzer-Key Features & Benefits:
1. Measurement of pH, pCO₂, and pO₂:
Provides critical insights into a patient’s oxygenation and ventilation status, essential in monitoring respiratory function.
2. Electrolyte Measurement:
Many analyzers, including PT1000, measure sodium (Na⁺), potassium (K⁺), chloride (Cl⁻), and calcium (Ca²⁺), supporting overall fluid and electrolyte balance assessment.
3. Lactate and Glucose:
These parameters help monitor metabolic function and detect critical conditions such as lactic acidosis or hypoglycemia.
4. Rapid Turnaround:
Results are delivered within minutes—often under 60 seconds—making it ideal for time-sensitive decisions in emergency and ICU settings.
5. Portability:
Devices like blood gas analyzer PT1000 are compact and easy to carry, enabling use across multiple medical settings, including operating rooms, ambulances, and bedside care.
6. User-Friendly Interface:
Equipped with a touchscreen and intuitive UI, healthcare providers can quickly operate the device with minimal training.
7. EHR Data Management:
Integration with hospital information systems for better data access.
Blood Gas Analyzer PT1000 Specifications:
| Category | Specification |
| Throughput | Results in 60 seconds after sample aspiration |
| Sample Volume | 150µL |
| Operation Environment | 10 °C – 31 °C |
| Power Supply | AC 100-240V, 50Hz/60Hz |
| Dimensions & Net Weight | 260 * 270 * 410 mm, 9.5Kg |
| Display | 10.4-inch color LCD touch screen display, resolution 1024*768 |
| Battery | Lithium-ion battery 14.8v / 6500mAh |
| Accessory | Barcode scanner |
| Interface | 4*USB 2.0 host, WLAN |
| Parameter | 100000+ Tests |
| Communication Link | Supports HL7 protocol LIS/HIS |
Calculation Parameters (23 items)
cH+, cH+(T), pH(T), pCO2(T), pO2(T), HCO3-act, HCO3-std, BB(B), BE(B), BE(ecf), CtCO2, Ca++(7.4), sO2(est), AnGap, tHb(est), pO2(A-a), pO2(A-a) (T), pO2(a/A), pO2(a/A) (T), RI, Rl(T), pO2/FIO2, pO2(T)/FIO2
Test Menu
Measurement Parameters (10 items)
| Parameter | Unit | Reportable Range | Precision (CV) |
| pH | – | 6.8-8.0 | SD≤0.02 |
| pO2 | mmHg | 20-600 | CV≤7.5% |
| pCO2 | mmHg | 15-130 | SD≤2.5mmHg |
| Na+ | mmol/L | 100-180 | CV≤1.5% |
| K+ | mmol/L | 2.0-9.0 | SD≤0.25mmol/L |
| Ca+ | mmol/L | 0.25-2.5 | SD≤0.15mmol/L |
| ci– | mmol/L | 70-150 | CV≤5% |
| Glu | mmol/L | 1.1-27 | CV≤5% |
| Lac | mmol/L | 0.3-17 | CV≤7.5% |
| Hct | %PCV | 20%-70% | CV≤3% |

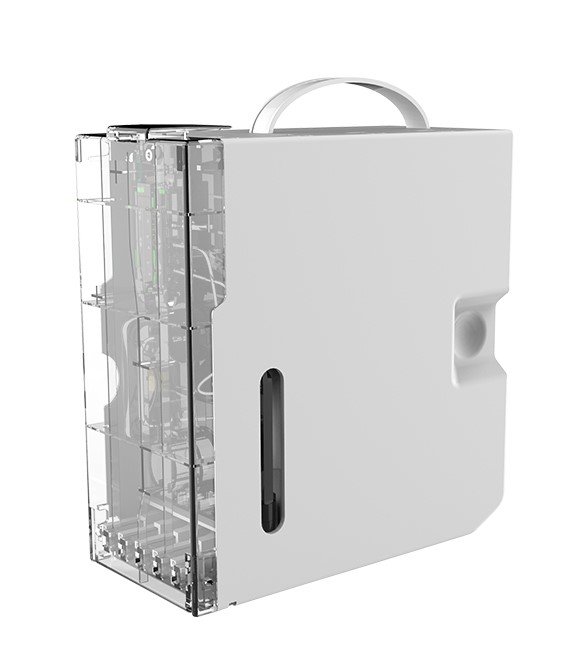

All-in-one Cartridge:
- No external fluidics, making the instrument completely maintenance-free.
- Self-contained calibration, cleaning solution, and biohazard waste collection all within one cartridge.
- Optimized design minimizes the risk of clotting or contamination.
Easy Operation:
- Touch-screen with intuitive prompts
- Simple 4-step process, easy to use
- Supports HL7 protocol for LIS/HIS
High Efficiency:
- Uses microsensor technology to deliver results for up to 33 parameters in only 60 seconds.
- Includes automatic calibration and real-time system performance monitoring.
- Built-in printer for instant report generation after testing.
Ultimate Flexibility:
- Compact size for various units (ICU, ED, OR, etc.)
- Convenient handle, easy to carry
- Built-in battery, 4 hours back-up
- Unrestrained and portable active stereo speaker
- Free from the confines of wires and chords
- 20 hours of portable capabilities
- Double-ended Coil Cord with 3.5mm Stereo Plugs Included
- 3/4″ Dome Tweeters: 2X and 4″ Woofer: 1X
PT1000 Blood Gas Analyzer-Operation Guide with Screenshots:

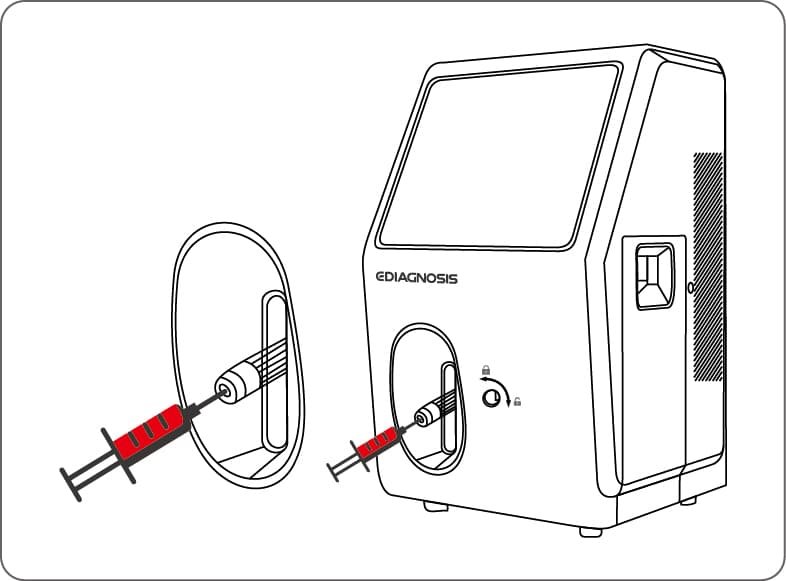

1. Choose items and click “Start” to take the test. 2.Auto aspirate the sample to be tested.

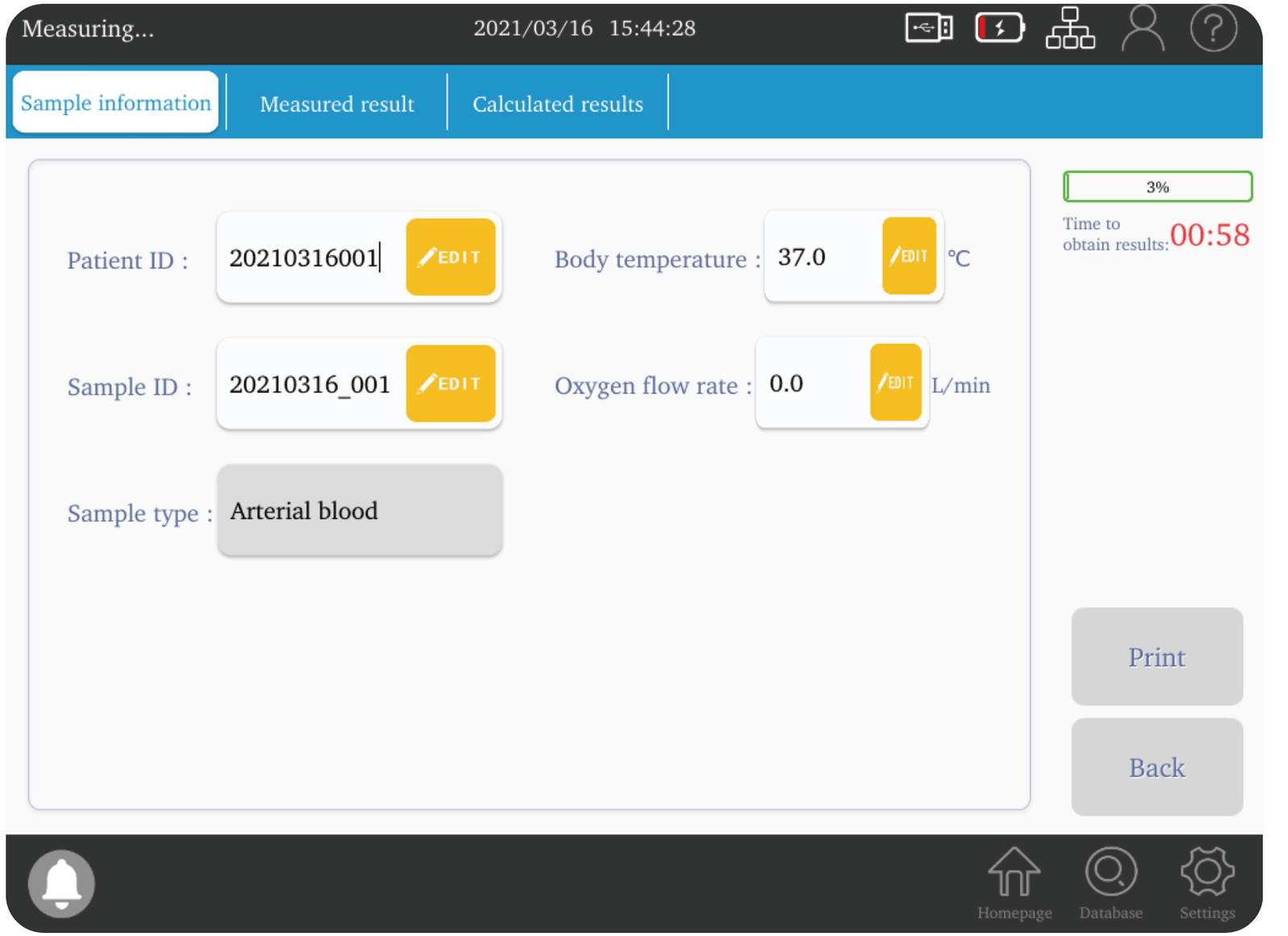

3.Scan or enter patient ID. 4.Wait for 60s and print test results.
Applications:
PT1000 Blood Gas Analyzer is well-suited for:
- Intensive Care Units (ICU)
- Emergency Departments (ED)
- Operating Rooms (OR)
- Ambulances
- Point-of-care testing
Its portability and efficiency make it ideal for urgent diagnostics, ensuring faster treatment response in life-critical situations.
